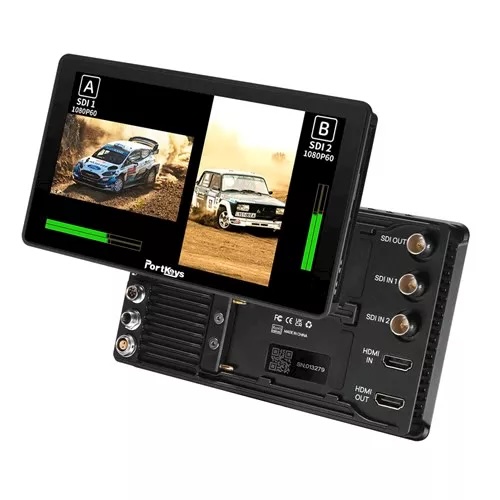

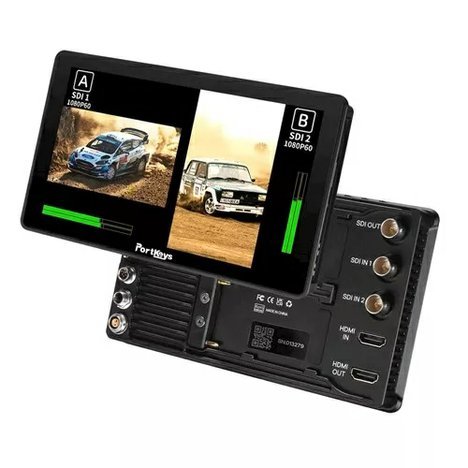

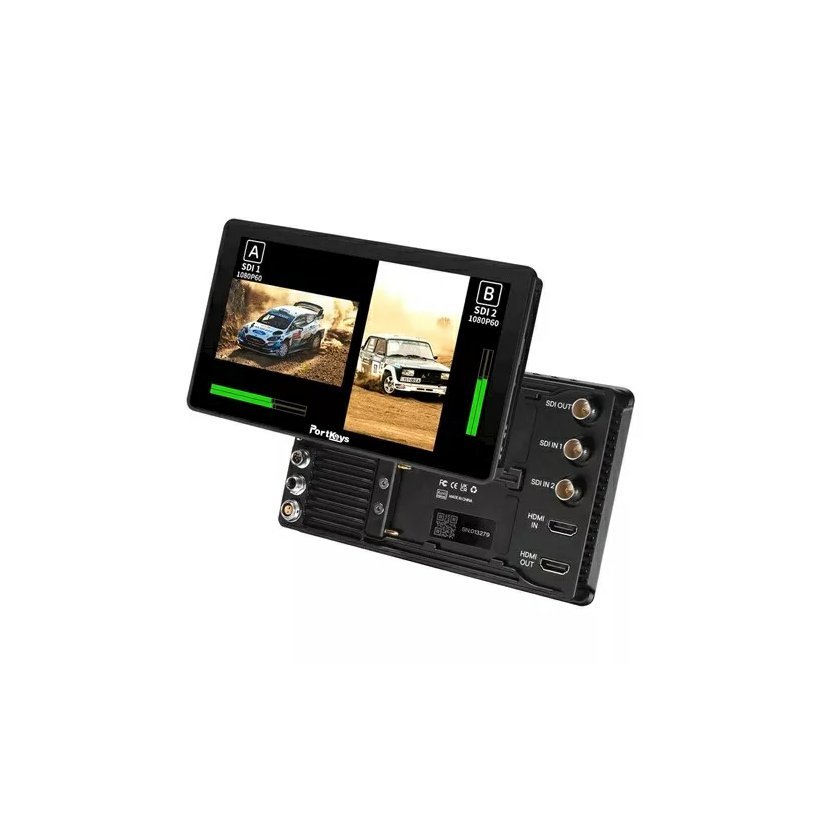

Portkeys - BM7 II DS

Description

Looking for a budget-wise 7-inch workhorse on-camera

monitor? The Portkeys BM7 II DS expands many features of

our famous BM5 III WR monitor. It’s touch screen display is

crisp, crystal-clear, and daylight-viewable. Camera operators

benefit from the four user-assignable function buttons, a full

suite of professional monitoring tools, the capability to control

your camera wired or wirelessly. The sherries on top are the

bigger screen real-estate, more input/output ports, and new

video monitoring capabilities.

Specifications

Screen Size 7”

Dimension 179.3 x 106.8 x 31mm

Viewing Angle 85/85/85/85

Brightness 2200nit

Resolution 1920x1080

Contrast Ratio 1000:1

Weight 460g

Color Gamut 85% P3

Box includes:

1x BM7 II DS Monitor

1x Screw-in DC Power Cable

1x Safety Box

1x Micro USB Flash Drive

1x Y-Type Wrench

Camera Control Cables (optional):

KOMODO Control Cable

RED Control Cable

LANC Control Cable

TYPE-C Control Cable

Canon Control Cable

Sony Control Cable

Color Depth 10bit(8+2 FRC)

Maximum Power 15W

Material Aluminium Alloy

Antenna 2.4G

Input Voltage 7.4V-24V

Fan Yes

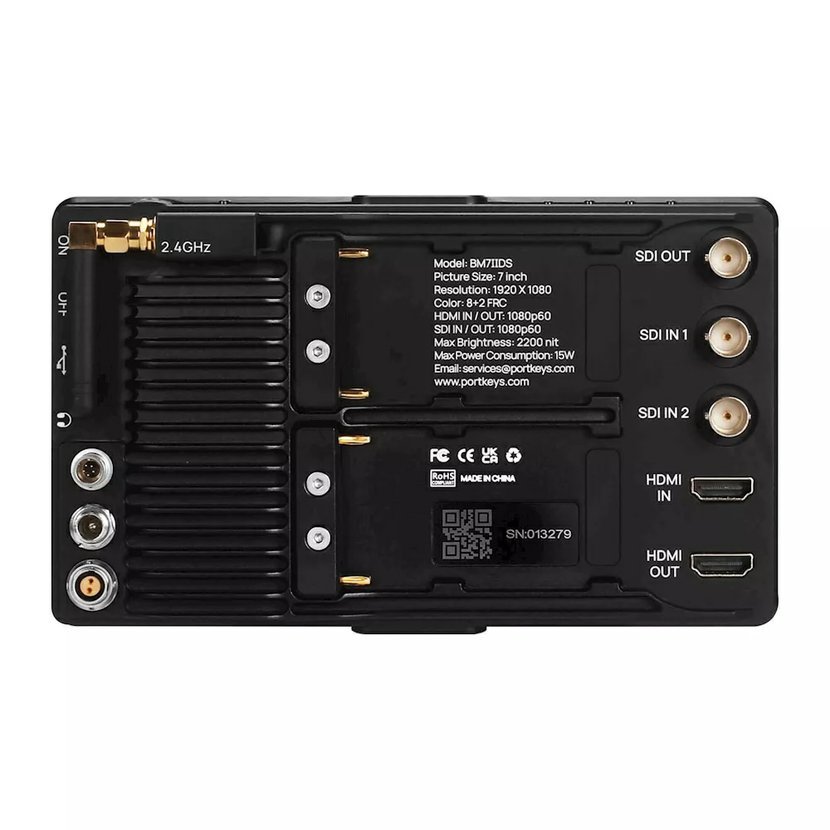

Video Input/Output

Input 3G SDIx2 HDMI / Signal

Conversion, HDMI to SDI HD

Output

Support Battery Model SONY NP-F970/F960/F750/F550

Camera Control Port Focus Puller / CAMERA REMOTE

USB-A Firmware Update / 3D LUT

Power Input / Output 2 Pin LEMO/DC 5.5 x 2.1

Audio Output 3.5mm Headphone Jack
